Description:
Product material:PE PP
Working temperature:-30℃~+100℃,+120℃can be reached but kept only for a short time.
Structure:Wavy shape both interiorly and exteriorly.
Color:Black.Other colors are customizable upon requirements.
1.Application:

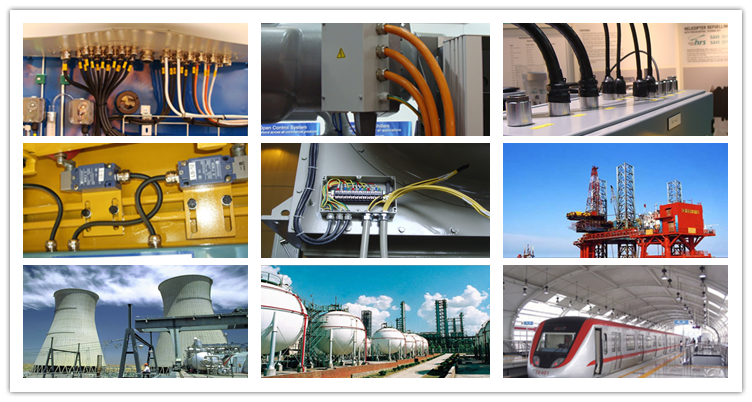

It can be used in machineries,electric equipment,foodstuff machineries,automatic meters and gauges,motors,protecting the cables from abrasion and providing insulation to the wires and cables.
Insert the wires and cables into the pipe and fit respective types of LNE:SM-G,SM and SM-F series flexible joints before using.
2.Detail information:
Item No. | flexible pipe (AD) | Inner × outer (mm) | Curved radius (mm) | Packaging unit (m) | ||
PP-PE-10.0 | AD10.0 | 1/4" | 6.5×10.0 | 16 | 100 | |
PP-PE -11.6 | AD11.6 | 8.0×11.6 | 16 | 100 | ||
PP-PE -13.0 | AD13.0 | 5/16" | 10.0×13.0 | 20 | 100 | |
PP-PE -15.8 | AD15.8 | 3/8" | 12.0×15.8 | 30 | 100 | |
PP-PE -18.5 | AD18.5 | 14.3×18.5 | 40 | 100 | ||
PP-PE -21.2 | AD21.2 | 1/2" | 17.0×21.2 | 45 | 100 | |
PP-PE 25.0 | AD25.0 | 20.0×25.0 | 45 | 50 | ||
PP-PE -28.5 | AD28.5 | 3/4" | 23.0×28.5 | 50 | 50 | |
PP-PE -34.5 | AD34.5 | 1 | 29.0×34.5 | 60 | 50 | |
PP-PE -42.5 | AD42.5 | 1 1/4" | 36.0×42.5 | 70 | 50 | |
PP-PE -54.5 | AD54.5 | 2" | 48.0×54.5 | 90 | 25 | |
PP-PE -74.0 | AD74.0 | 2 1/2" | 63.0×74.0 | 130 | 10 | |
PP-PE -88.0 | AD88.0 | 3" | 76.0×88.0 | 170 | 10 | |
PP-PE 108.0 | AD108.0 | 4" | 94.0×108.0 | 225 | 10 | |
Applications
1.Superior Quality:
All of the materials we used are 1st Class,our PVC Coated Flexible steel conduit are all high-quality,equipment and technics are very advanced.We pay much attention to every details of the quality from production to package.
2.Competitive Prices:
We ourselves bought material for our professional subsidiary factory to apply to producing,therefore,our cost is lower than others and the prices are much more competitive.
3.Convenience For Purchasing:
Customers can find all the related fittings here,and can get all the goods you need In a shorter time.Like set screw couplingcompression connectorsstrut clampsreducing bushings and so on.
4.Good Services:
All of our sales staff are professional and dedicated,and we offer good suggestion according to the demands of different customs from different countries.The most important is that Prostar is always responsible for our products,we offer the complete after-sale service.Exports to North America,the Middle East,Asia and other countries and regions.
